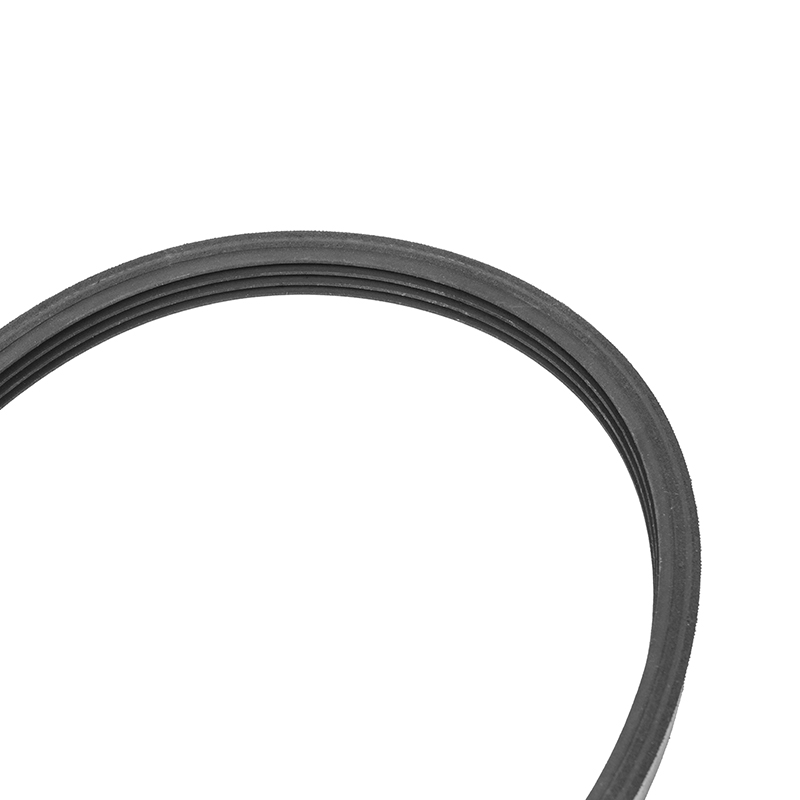

Multi Wedge Belt

‌Multi-V belt‌, also known as multi-groove belt or multi-slot belt, is a kind of annular rubber transmission belt with flat belt as base and 40° trapezoidal wedges arranged on the inner surface at equal intervals. Its working surface is the side of the wedge. The structural characteristics of multi-V belt make it have the advantages of large transmission power, small vibration and smooth operation during transmission. It is particularly suitable for transmission occasions requiring more V-belts or the wheel axis is perpendicular to the ground.

1. The transmission power is large, and the transmission power is 30% higher than that of ordinary V-belts in the same space.
2. The belt body is thin and flexible, which is suitable for transmission with small pulley diameter and high-speed transmission. The belt speed can reach 40m/s:
3. The addition of short fiber reinforcement can withstand higher lateral pressure, increase the belt wedge pressure performance, and reduce deformation after force; and the structure is compact, the vibration is small, and the operation is smoother.
4. It has the characteristics of cold and heat resistance, oil resistance, corrosion resistance, bending resistance, wear resistance, aging resistance, small elongation in use, and long service life.

PREV：No next articleNEXT：Poly-V Pulley
  • Specification
  • contact us

  • Features of multi-V belts:


    1. The transmission power is large, and the transmission power is 30% higher than that of ordinary V-belts in the same space.
    2. The belt body is thin and flexible, which is suitable for transmission with small pulley diameter and high-speed transmission. The belt speed can reach 40m/s:
    3. The addition of short fiber reinforcement can withstand higher lateral pressure, increase the belt wedge pressure performance, and reduce deformation after force; and the structure is compact, the vibration is small, and the operation is more stable.
    4. It has the characteristics of cold and heat resistance, oil resistance, corrosion resistance, bending resistance, wear resistance, aging resistance, small elongation in use, and long service life.





    Multi-V belt cross-section size



    Model PH PJ PK PL PM
    Wedge distance 1.60 2.34 3.56 4.70 9.40
    Wedge top arc radius rb, minimum value 0.30 0.40 0.50 0.40 0.75
    Groove bottom arc radius rt, maximum value 0.15 0.20 0.25 0.40 0.75
    With height h, approximate 2.6±0.1 3.6±0.2 4.8±0.3 7.0±0.3 12±0.3





    PH type



    Specification Effective length
    PH509
    PH561
    PH621
    PH701
    PH725    		 509.00
    561.00
    621.00
    701.00
    725.00
    PH770
    PH848
    PH412
    PH977
    PH1044    		 770.00
    848.00
    412.00
    977.00
    1044.00
    PH1131
    PH1169
    PH1217
    PH1278
    PH1382    		 1131.00
    1169.00
    1217.00
    1278.00
    1382.00
    PH1476
    PH1517
    PH1646
    PH1725
    PH1832    		 1476.00
    1517.00
    1646.00
    1725.00
    1832.00
    PH1942
    PH2141
    PH2666    		 1942.00
    2141.00
    2666.00





    PJ Type



    Specification Effective length
    PJ508
    PJ560
    PJ620
    PJ700
    PJ724    		 508.00
    560.00
    620.00
    700.00
    724.00
    PJ769
    PJ847
    PJ411
    PJ976
    PJ1043    		 769.00
    847.00
    411.00
    976.00
    1043.00
    PJ1130
    PJ1168
    PJ1216
    PJ1277
    PJ1381    		 1130.00
    1168.00
    1216.00
    1277.00
    1381.00
    PJ1475
    PJ1516
    PJ1645
    PJ1724
    PJ1831    		 1475.00
    1516.00
    1645.00
    1724.00
    1831.00
    PJ1941
    PJ2195
    PJ2665    		 1941.00
    2195.00
    2665.00







    PK type



    Specification Effective length
    PK503
    PK555
    PK615
    PK695
    PK719    		 503.00
    555.00
    615.00
    695.00
    719.00
    PK764
    PK842
    PK956
    PK971
    PK1038    		 764.00
    842.00
    956.00
    971.00
    1038.00
    PK1125
    PK1163
    PK1211
    PK1272
    PK1376    		 1125.00
    1163.00
    1211.00
    1272.00
    1376.00
    PK1470
    PK1511
    PK1640
    PK1719
    PK1826    		 1470.00
    1511.00
    1640.00
    1719.00
    1826.00
    PK1936
    PK2190
    PK2660    		 1936.00
    2190.00
    2660.00







    PL Type



    Specification Effective length
    PL683
    PL707
    PL752
    PL830
    PL944    		 683.00
    707.00
    752.00
    830.00
    944.00
    PL959
    PL1026
    PL1113
    PL1151
    PL1199    		 959.00
    1026.00
    1113.00
    1151.00
    1199.00
    PL1260
    PL1364
    PL1458
    PL1499
    PL1628    		 1260.00
    1364.00
    1458.00
    1499.00
    1628.00
    PL1707
    PL1814
    PL1924
    PL2178
    PL2250    		 1707.00
    1814.00
    1924.00
    2178.00
    2250.00
    PL2362
    PL2482
    PL2751    		 2362.00
    2482.00
    2751.00







    PM Type



    Specification Effective length
    PM1322
    PM1335
    PM1364
    PM1375
    PM1445    		 1322.00
    1335.00
    1364.00
    1375.00
    1445.00
    PM1470
    PM1492
    PM1524
    PM1550
    PM1615    		 1470.00
    1492.00
    1524.00
    1550.00
    1615.00
    PM1642
    PM1678
    PM1766
    PM1810
    PM2015    		 1642.00
    1678.00
    1766.00
    1810.00
    2015.00
    PM2155
    PM2220
    PM2295
    PM2330
    PM2453    		 2155.00
    2220.00
    2295.00
    2330.00
    2453.00
    PM2772
    PM2900
    PM3100    		 2772.00
    2900.00
    3100.00
